Sikalastic HLM 5000 GC Exterior below Grade Waterproof Coating for Concrete and Foundations, Flexible, Long-Lasting, Asphalt-Modified Polyurethane, 5-Gallon Pail

Sikalastic HLM 5000 GC Exterior below Grade Waterproof Coating for Concrete and Foundations, Flexible, Long-Lasting, Asphalt-Modified Polyurethane, 5-Gallon Pail

$363.76 USD
$0.00 USD $363.76 USD
Sale Sold out
  • Easy to apply with no mixing required
  • Elastomeric product accommodates expansion and contraction
  • Wide service temperature range, making HLM 5000 GC suitable for all climates
  • Chemical resistance to select acids, alkalis, and salts
  • Seamless cold-applied membrane eliminates lapping, seaming and precutting
  • Can be applied to damp or newly poured concrete
  • Passes ASTM C 1305 and compliant with ASTM C 836 and SCAQMB
  • Does not require hot-melt equipment

Product description

Product Description

Sikalastic HLM 5000 GC (Formerly MasterSeal HLM 5000 GC) is a liquid, cold-applied, one-component, moisture-curing, bitumen-modified polyurethane elastomeric waterproofing membrane for exterior below-grade or between slab applications.

Apply Sikalastic HLM 5000 GC when substrates are dry and air temperatures are +40 °F to +90 °F (+4 °C to +32 °C); for application at temperatures below +40 °F (+4 °C), consult Technical Services.

A test application is always recommended before proceeding with entire application.

NOTE: Finish coat must be applied in a pinhole-free, continuous membrane for waterproofing integrity.

Appreciable properties develop within 24–48 hours at 75 °F (24 °C) and 50% relative humidity. Protect Sikalastic HLM 5000 GC from traffic during curing.

Product Uses

  • Concrete
  • Plywood (exterior)

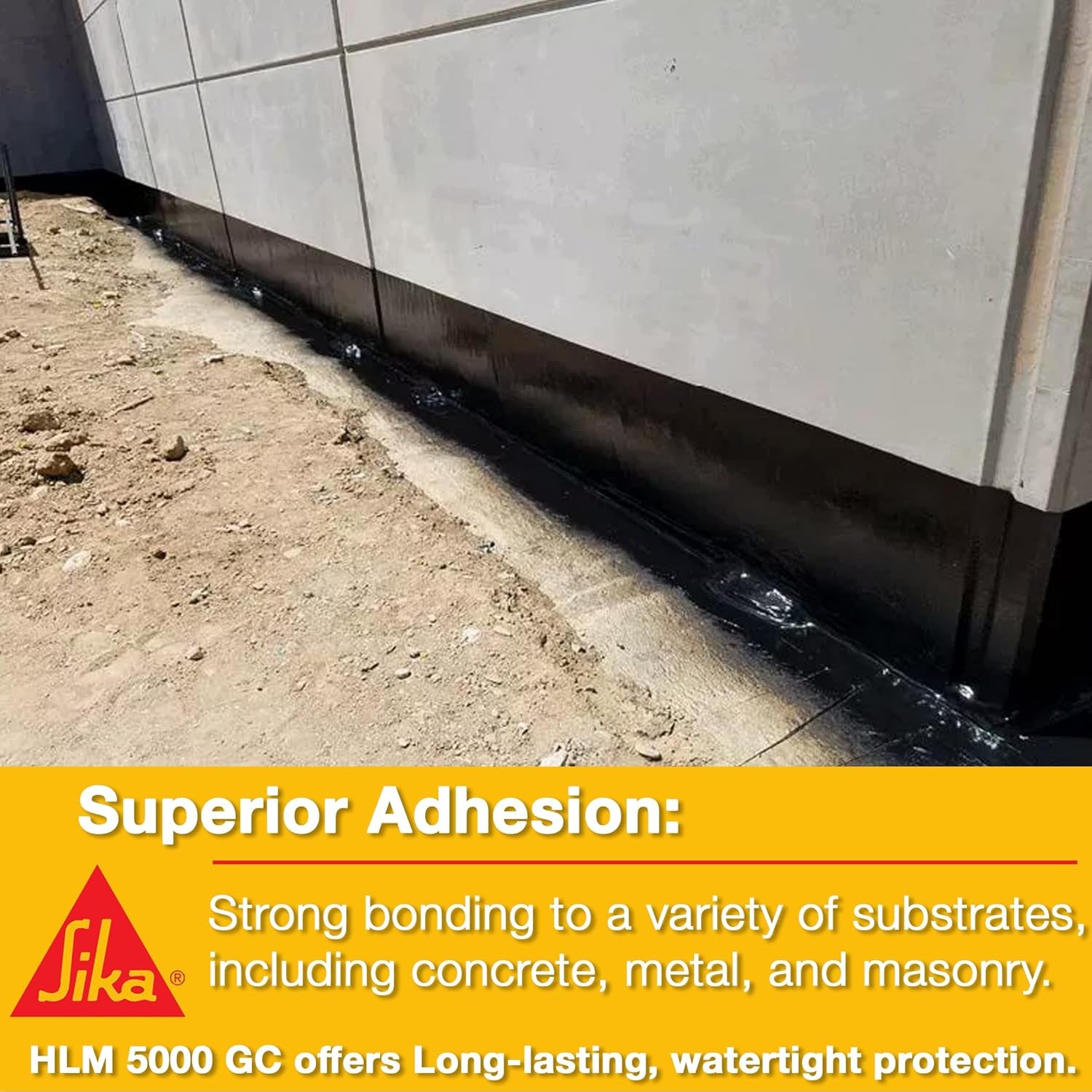

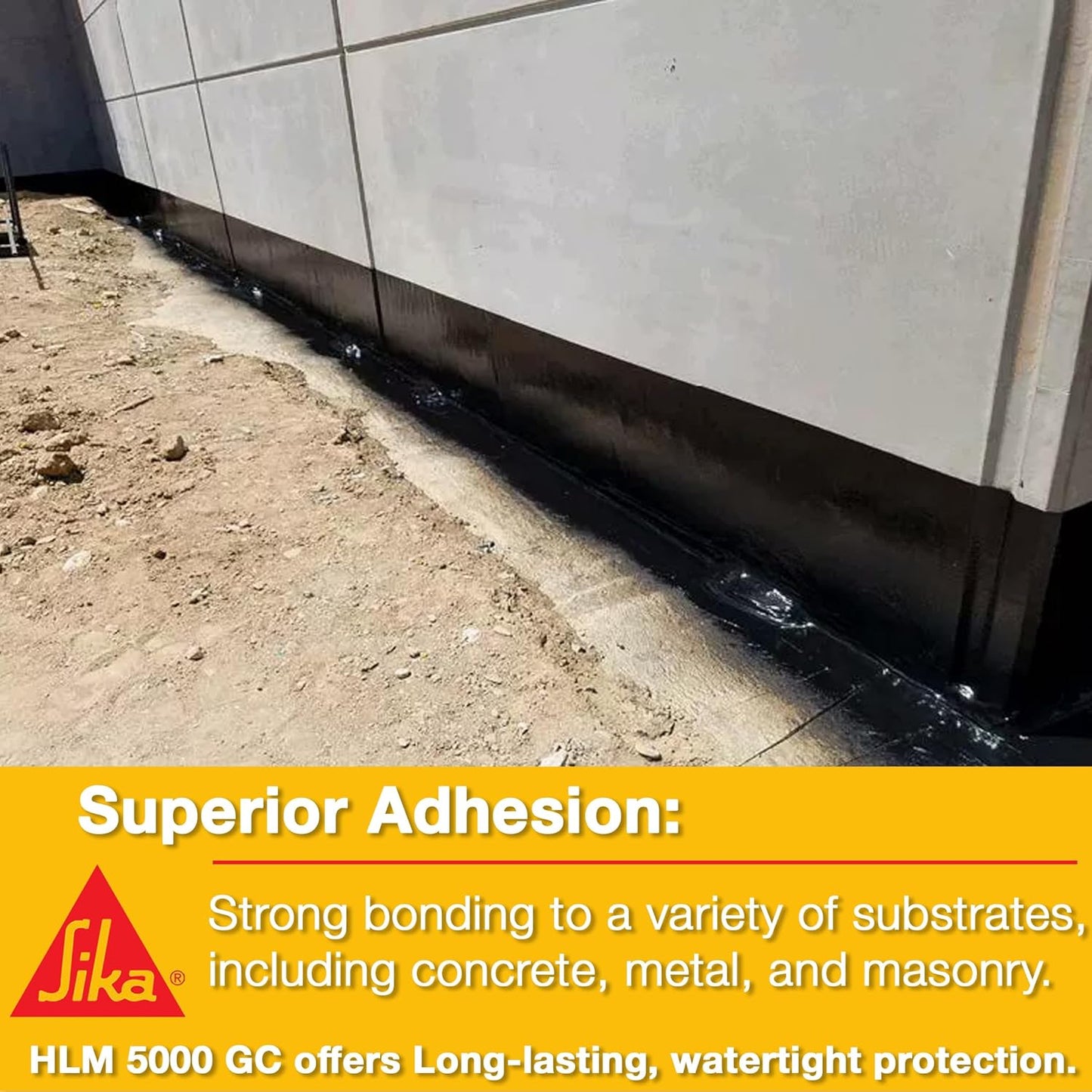

  • Exterior below grade (on masonry, concrete, and incidental metal)
  • Above grade (between two-course concrete and within cavity walls)
  • Parking garages
  • Plaza decks and malls
  • Balconies and planters
  • Below-grade slabs and split slabs

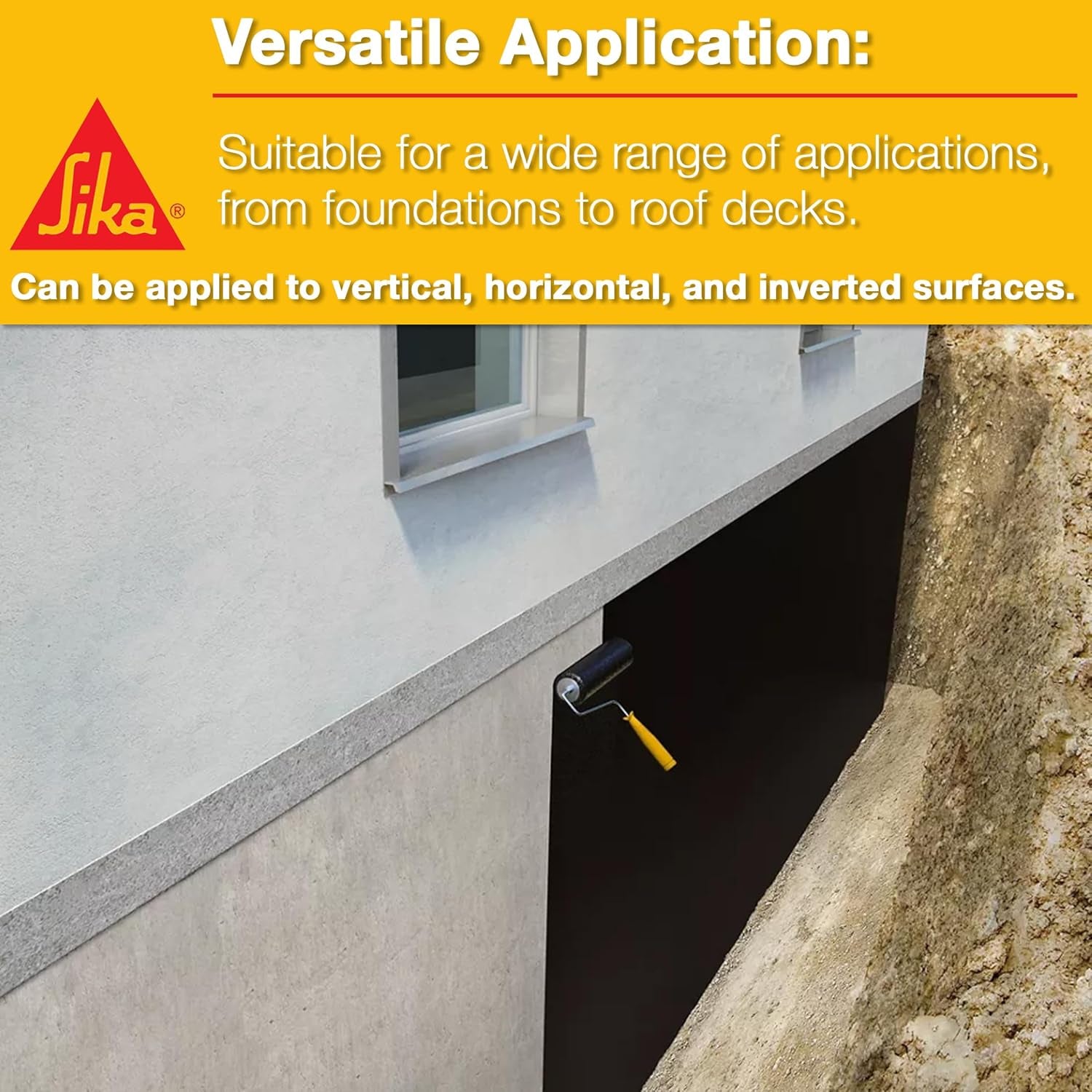

  • Foundation walls
  • Walls and culverts

Product Characteristics and Advantages

  • Sikalastic HLM 5000 GC can be applied minimum 72 hrs after the concrete is poured, or as little as 24 hrs following the removal of the forms
  • Can be applied to damp concrete
  • Available in standard and high-build systems to prevent water penetration
  • Passes ASTM C 1305
  • Elastomeric product accommodates expansion and contraction
  • Wide service-temperature range, making Sikalastic HLM 5000 GC suitable for all climates
  • Chemical resistance to select acids, alkalis and salts
  • Seamless cold-applied membrane eliminates lapping, seaming and precutting
  • Does not require hot-melt equipment
  • Compliant with ASTM C 836 and SCAQMB

Product Information

CSI / CSC MasterFormat 07 14 00 Fluid-Applied Waterproofing
Chemical Base Bitumen-modified polyurethane

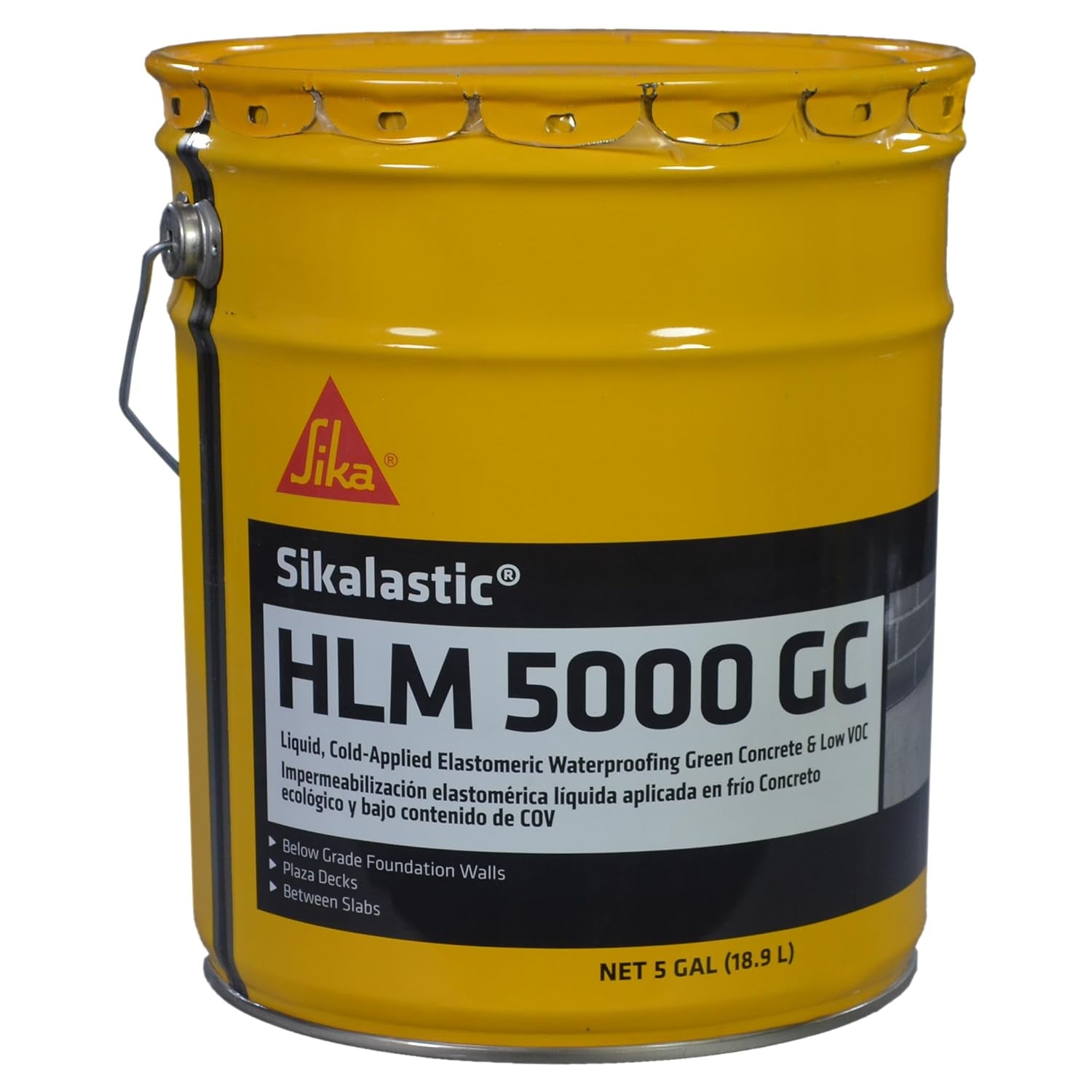

Packaging 5 gal (19 lts) pails
Storage Conditions Store in unopened containers in clean, dry, conditions at +40 °F to +80 °F (+4 °C to +27 °C). During storage, an easily removable skin of Sikalastic HLM 5000 GC may form, which does not affect performance of the product.
Solid content by mass 85% ± 1%
Thickness: 60 mils Approx. 25 - 30 ft2/gal at 55 - 65 wet mils | 45 - 55 dry mils (Approx. 0.61 - 0.74 m2/L at 1.4 - 1.7 mm wet thickness | 1.1 - 1.4 mm dry thickness)
Thickness: 90 mils Approx. 17 - 19 ft2/gal at 85 - 95 wet mils | 75 - 85 dry mils (Approx. 0.42 - 0.47 m2/L at 2.2 - 2.4 mm wet thickness | 1.9 - 2.2 mm dry thickness)
Thickness: 120 mils Approx. 13 - 14 ft2/gal at 115 - 125 wet mils | 105 - 115 dry mils (Approx. 0.32 - 0.34 m2/L at 2.9 - 3.2 mm wet thickness | 2.7 - 2.9 mm dry thickness)
Thickness Note: Coverage may vary with the application technique used. Actual coverage rate and mil thickness depend on finish and porosity of the substrate.
Viscosity 800 poise
VOC Content RG: 53 g/L

Technical Information

Shore A - ASTM C 836 (Type OO) 120 mil (High-Build): N/A, 60 mil (Standard): 85
Tensile Strength - ASTM D 412 120 mil (High-Build): 200 psi (1.4 MPa), 60 mil (Standard): 150 psi (1.0 MPa)
Elongation - ASTM D 412 120 mil (High-Build): 300%, 60 mil (Standard): 600%
Crack Bridging Ability ASTM C 1305 cycled 10 times per 24 hrs at +15 °F (- 9 °C)
Crack Bridging Ability Cont. 120 mil (High-Build): Passed 1/4" no loss of bond or cracking exhibited, 60 mil (Standard): Passed 1/16" no loss of bond or cracking exhibited
Adhesion in Peel - ASTM C 836 120 mil (High-Build): min. 5 lbs/in, 60 mil (Standard): min. 5 lbs/in
Dimensional Stability ASTM C 836 (20% maximum)
Dimensional Stability Cont. [Weight Loss]120 mil (High-Build): 16%, 60 mil (Standard): 16%
Thermal Resistance - ASTM C836 120 mil (High-Build): No cracking, 60 mil (Standard): No cracking
Service Temperature min. - 40 °F (- 40 °C) / max. + 120 °F (+50°C)
Dimensional Change After immersion in water: None (after 3 days at +73 °F / +23 °C)
Water Vapor Transmission ASTM E96
Water Vapor Transmission Cont. 120 mil (High-Build): 0.075 perms, 60 mil (Standard): 0.1 perms
