AGT Mini Skid Steer Track Loader 32.8HP Gas Engine 1.5 Ton Crawler Bucket 37.4In

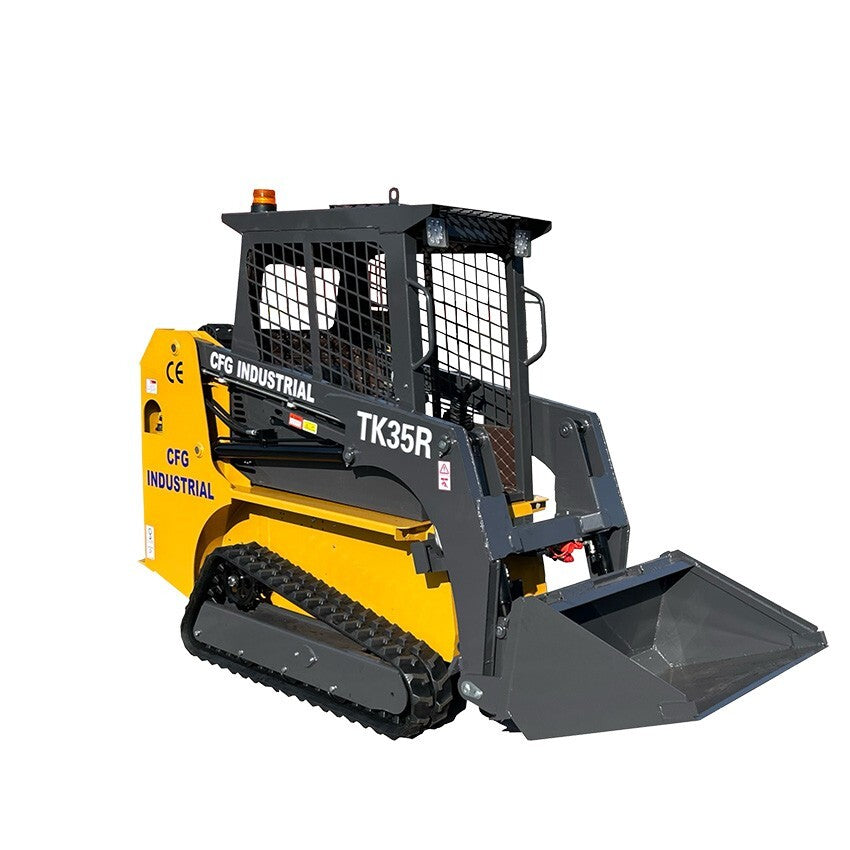

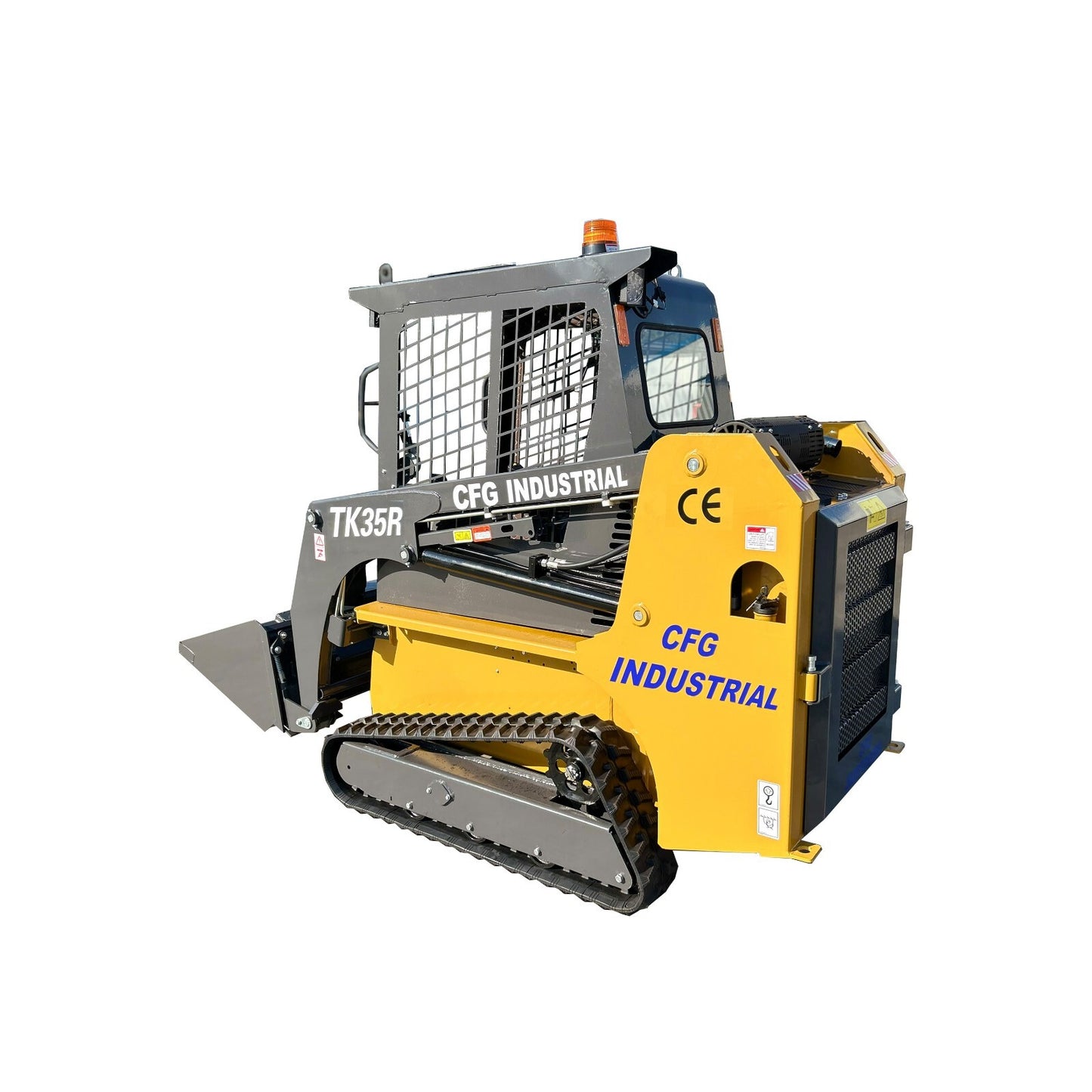

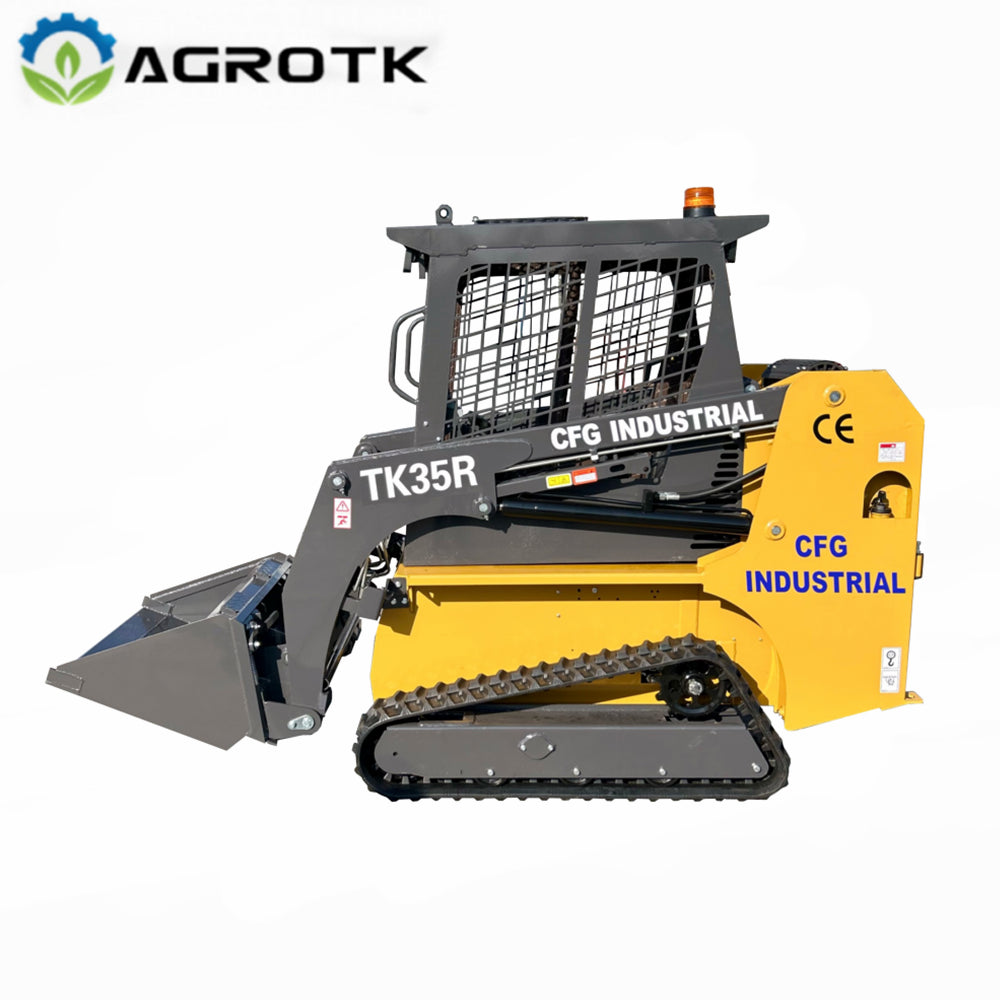

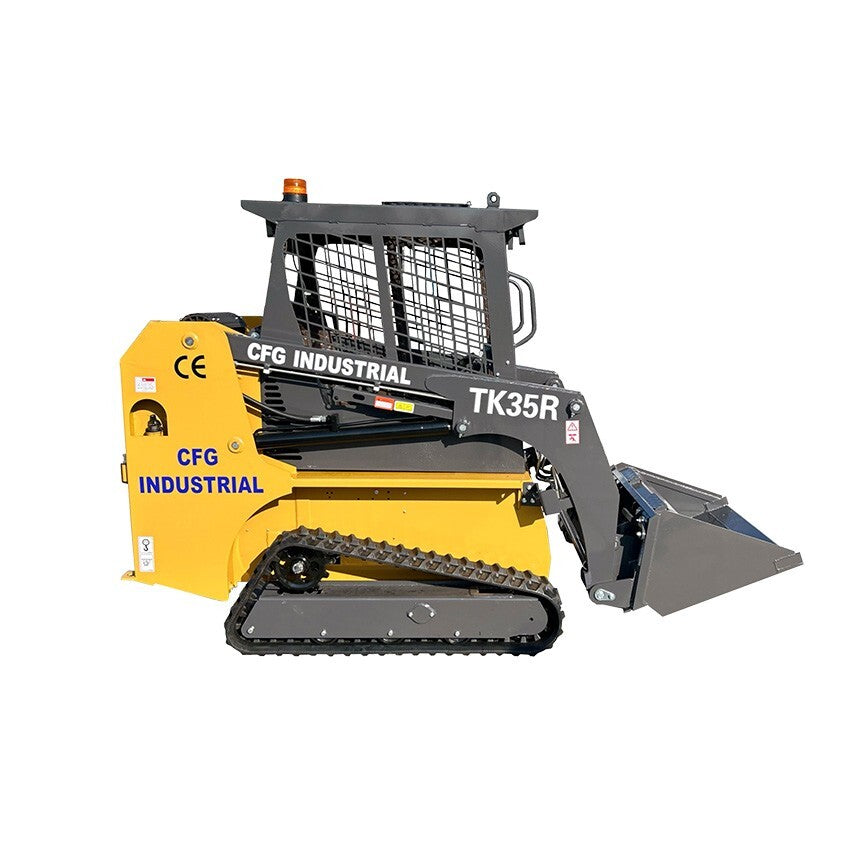

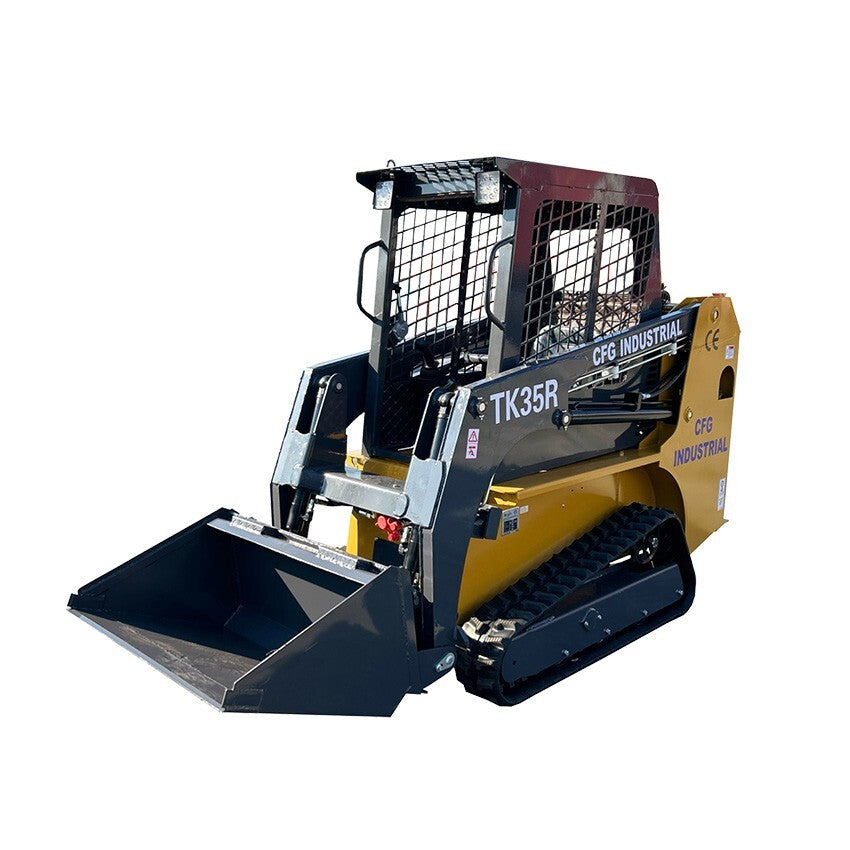

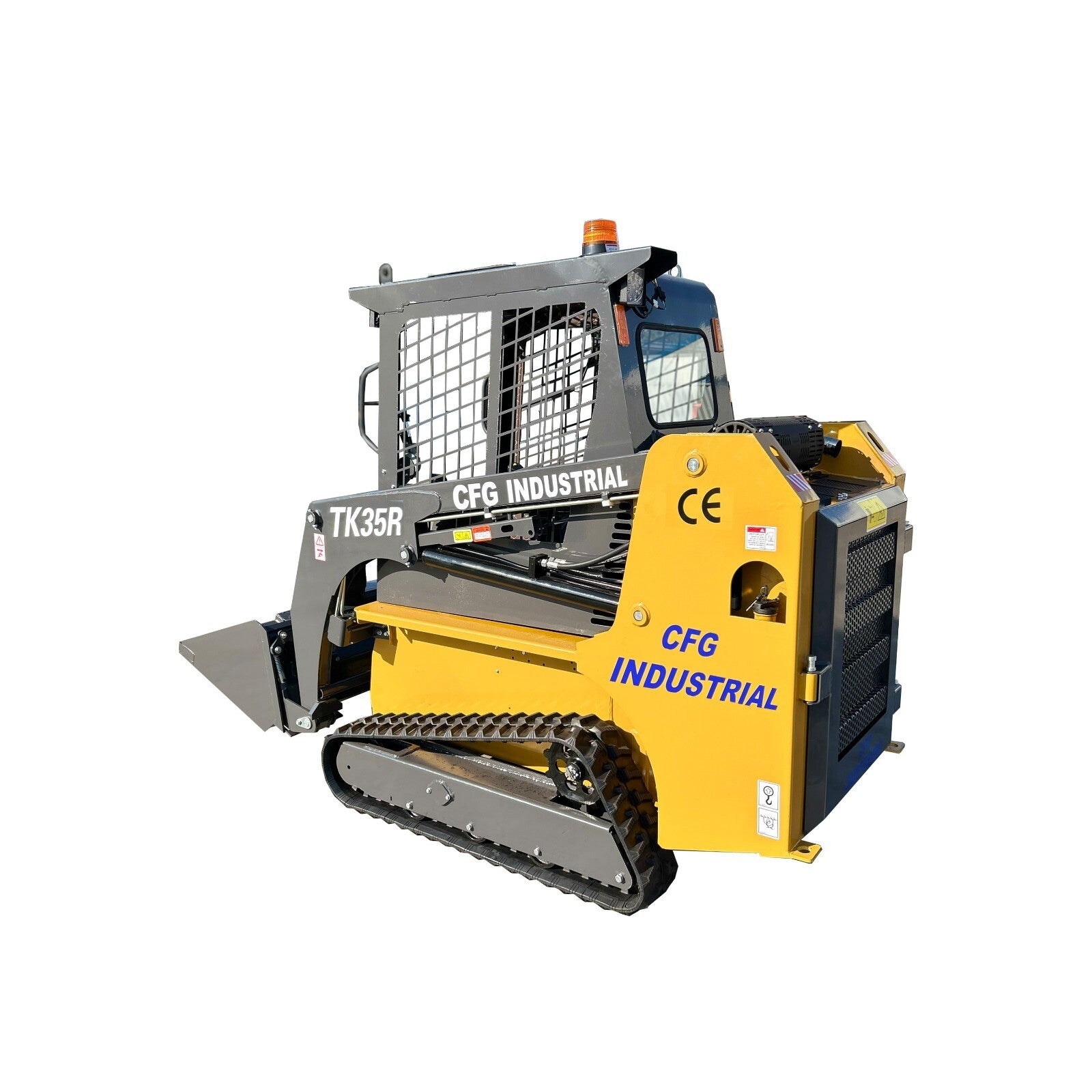

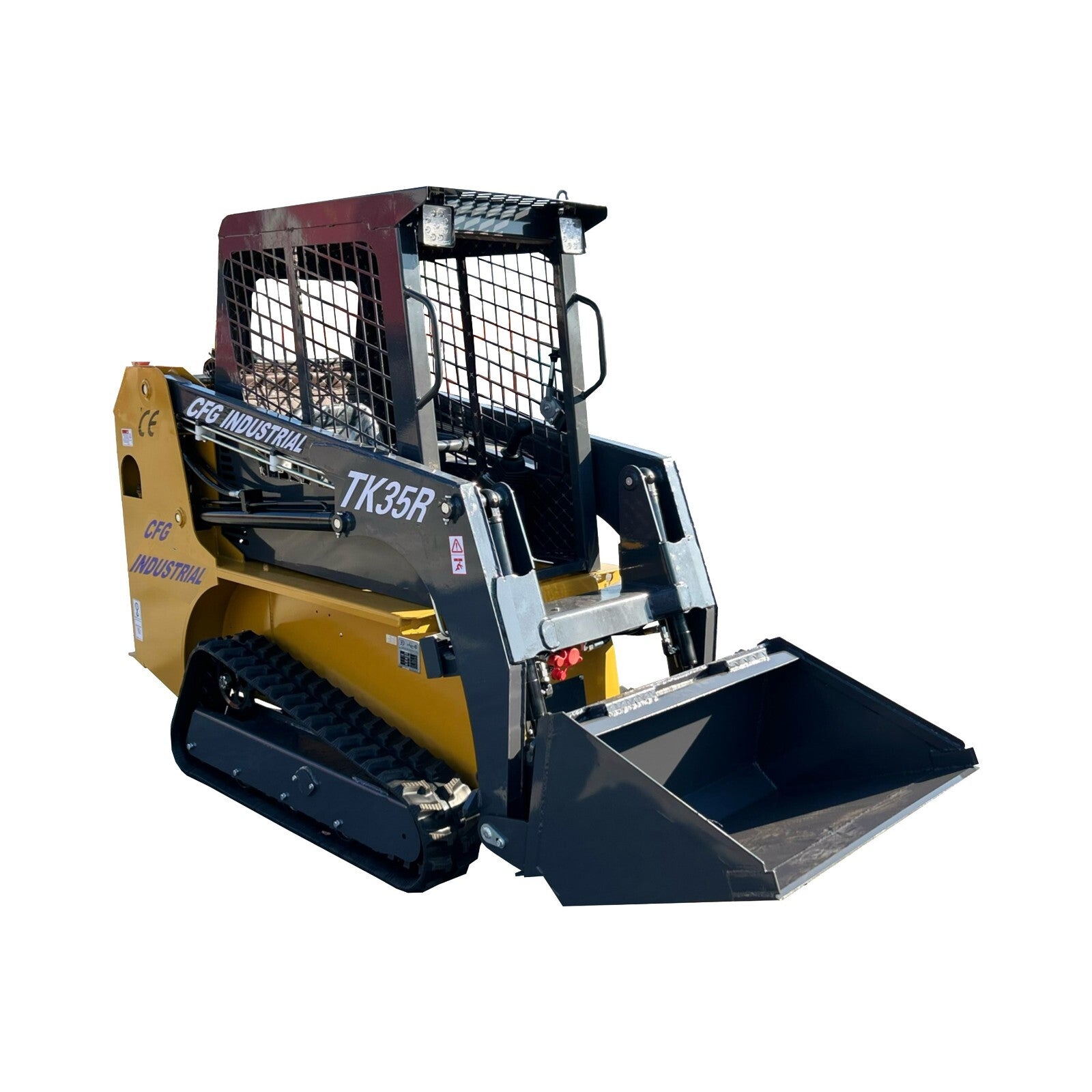

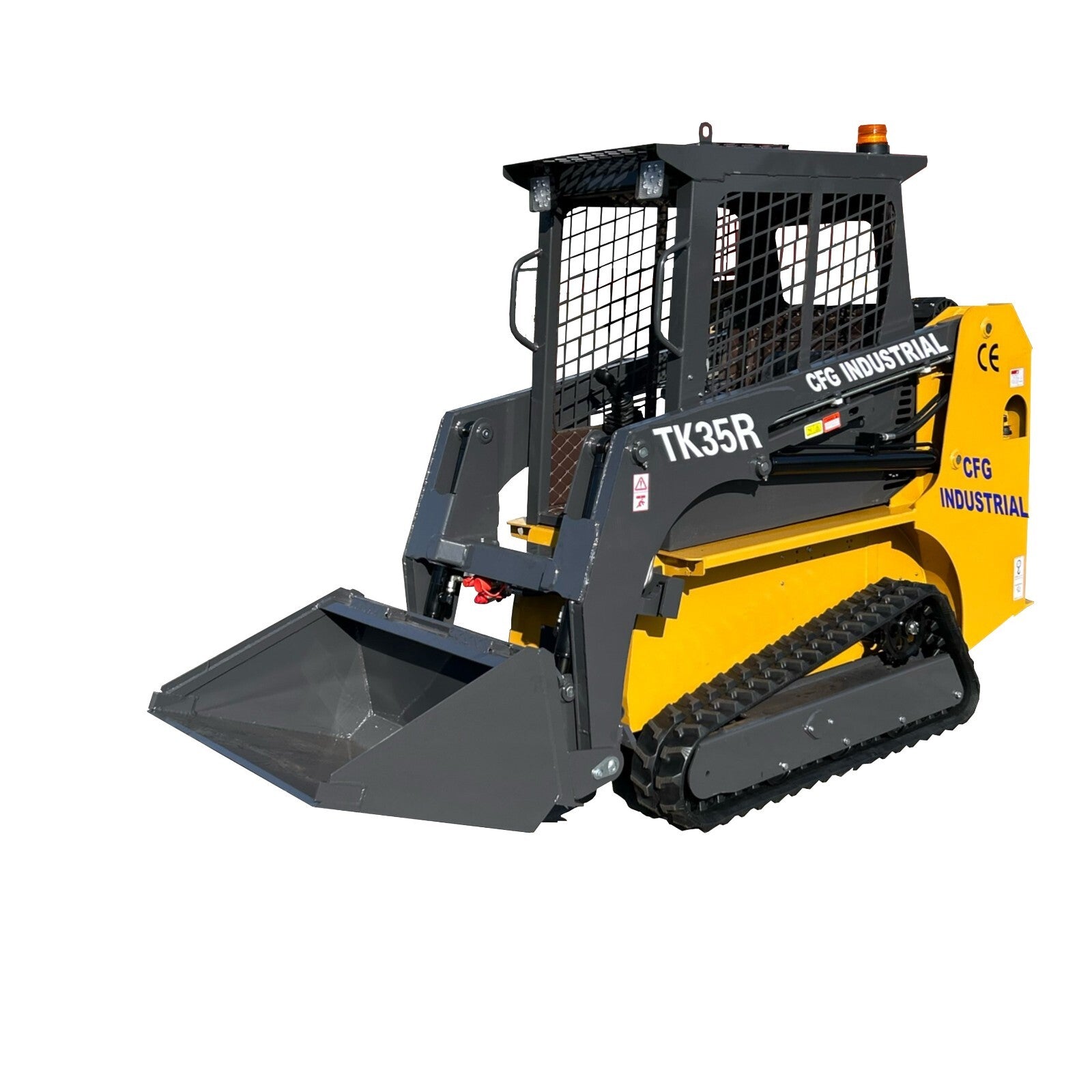

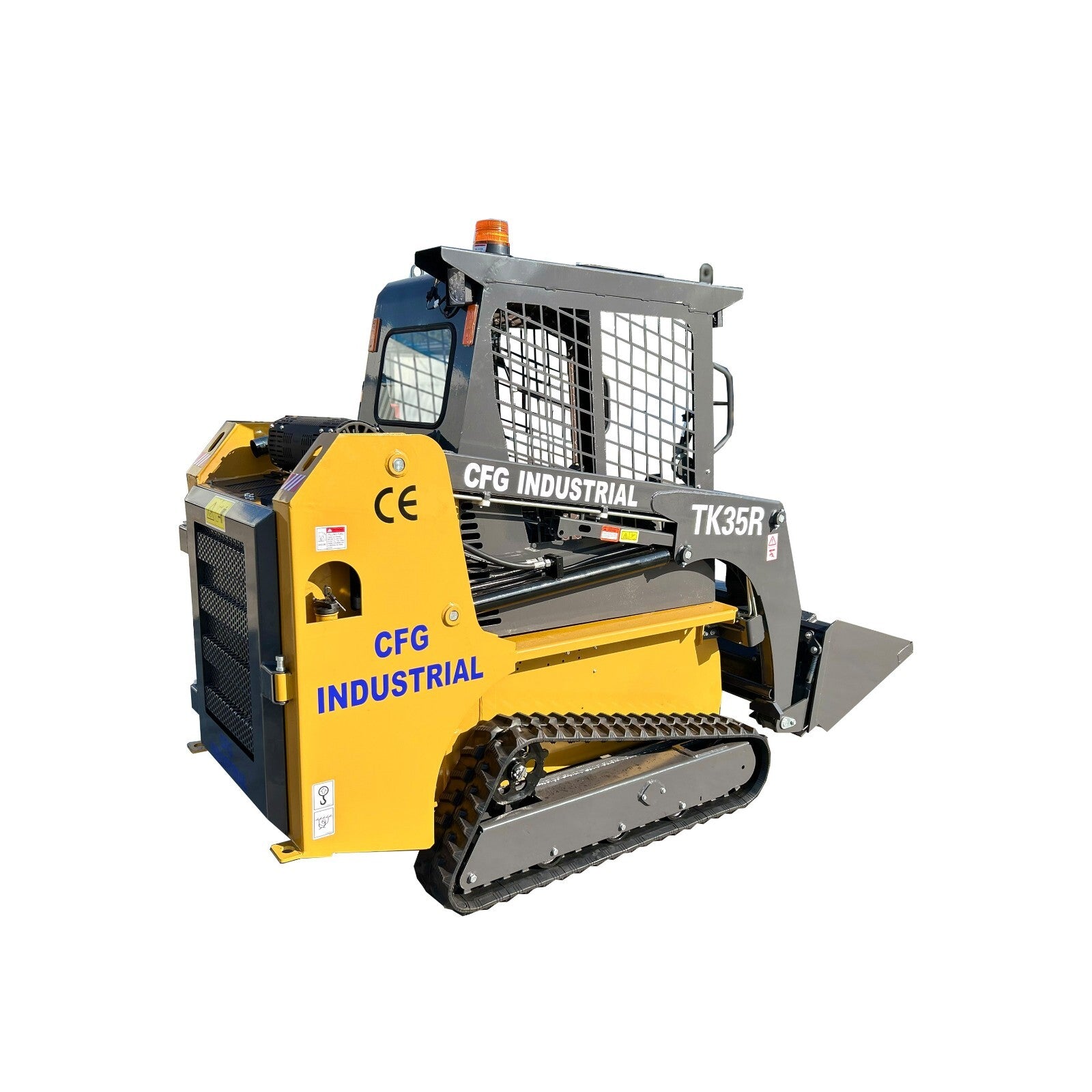

AGT TK35R Mini Skid Steer Track Loader 32.8HP Gas

Engine 1.5ton Crawler Bucket 37.4in Free Shiping

Notice:

1. Free Shipping, Before purchasing, due to the heavy machine, you need to have the ability to unload forklift or trailer

Features:

1. Shoveling and handling bulk materials: used for shoveling soil, sand, lime, coal and other bulk materials. stone, lime, coal and other bulk materials. Load through the bucket loaded into the transportation vehicle through the bucket, so as to realize the handling of materials.

2. Roadbed and road construction: Used for filling and excavating roadbed and cement concrete quarry. excavation of roadbed project and aggregate and loading of cement concrete yard.Fast and efficient completion of tasks and improvement of construction efficiency.

3. Demolition and cleaning work: commonly used for demolition of construction materials such as concrete and asphalt, and removal of waste materials. and other building materials, and loading debris and excavated materials on to other vehicles to remove debris from construction sites.

Technical Data:

• Type:Mini Skid Steer
• Model:TK35R
• Color:Yellow
• Working weight of the whole machine (kg): 1550
• Bucket capacity (m3): 0.16
• Walking speed Low/high speed (Km/h): 4.5
• Climbing capacity (%): 30
• Maximum lifting force (Kg): 380
• Maximum working height C(mm): 686
• Maximum unloading height A(mm):1933
• Loading distance G(mm): 650
• Ground clearance F(mm):145
• Bucket discharge angle L:40
• Bucket width E(mm):950
• Total length J/K(mm):911
• Total width N(mm): 912
• Total height D(mm):910
• Engine brand: RATO
• Engine model: 999
• Maximum horsepower (ps): 32.8
• Maximum power (Kw): 25
• Maximum speed (rpm): 3600
• Displacement (cc): 999
• Number of cylinders: 2
• Cooling method: air-cooled
• Engine oil replacement quantity (L): 2.3
• Fuel form: gasoline
• Fuel number: No. 92
• Theoretical fuel consumption (L/h): 2-2.6
• Main pump type/model: gear pump
• Main pump brand: Tianjin Travel
• Rated set pressure (Mpa): 20
• Maximum flow rate of main pump (L/min): 70
• Multi-channel valve: pilot handle + 5-connection hydraulic controlled multi-channel valve
• Multi-way valve brand:/
• Rated set pressure (Mpa): 18
• Walking hydraulic motor type: cycloidal motor
• Walking motor brand: Danvers
• Motor displacement: 457
• O-Rubber (bandwidth*pitch*number of nodes): 200*72*45
• Quantity:1pcs
