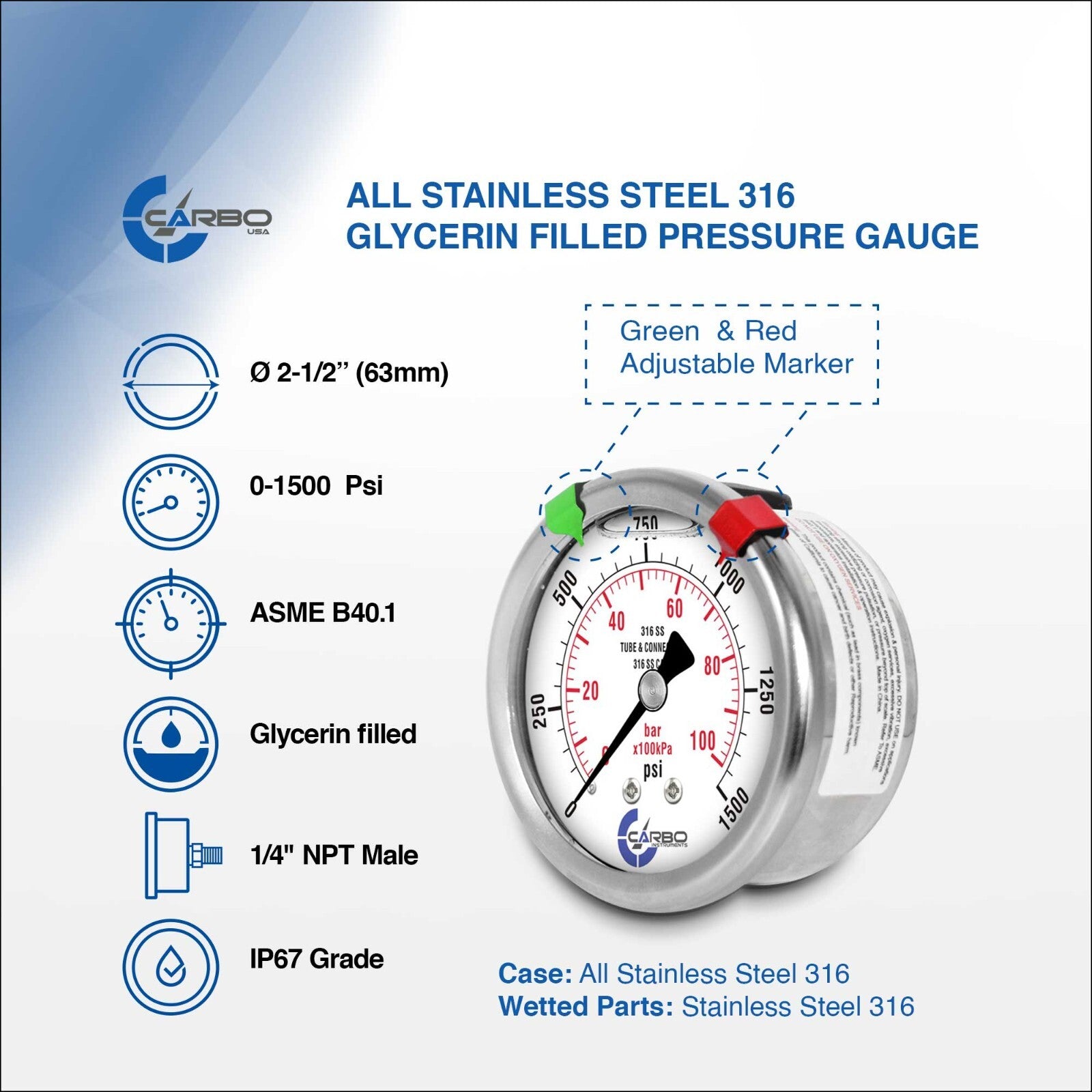

LIQUIDFILLEDPRESSUREGAUGE
2 ½" All Stainless Steel Case and wetted Parts - Back Mount
Product Features & Applications
üASME B40.1 Grade A Accuracy Compliance
üStainless Steel Case, Stainless Steel Wetted parts 316
üLarge Dial Print
üReliable anddampenPulsation& Vibration.

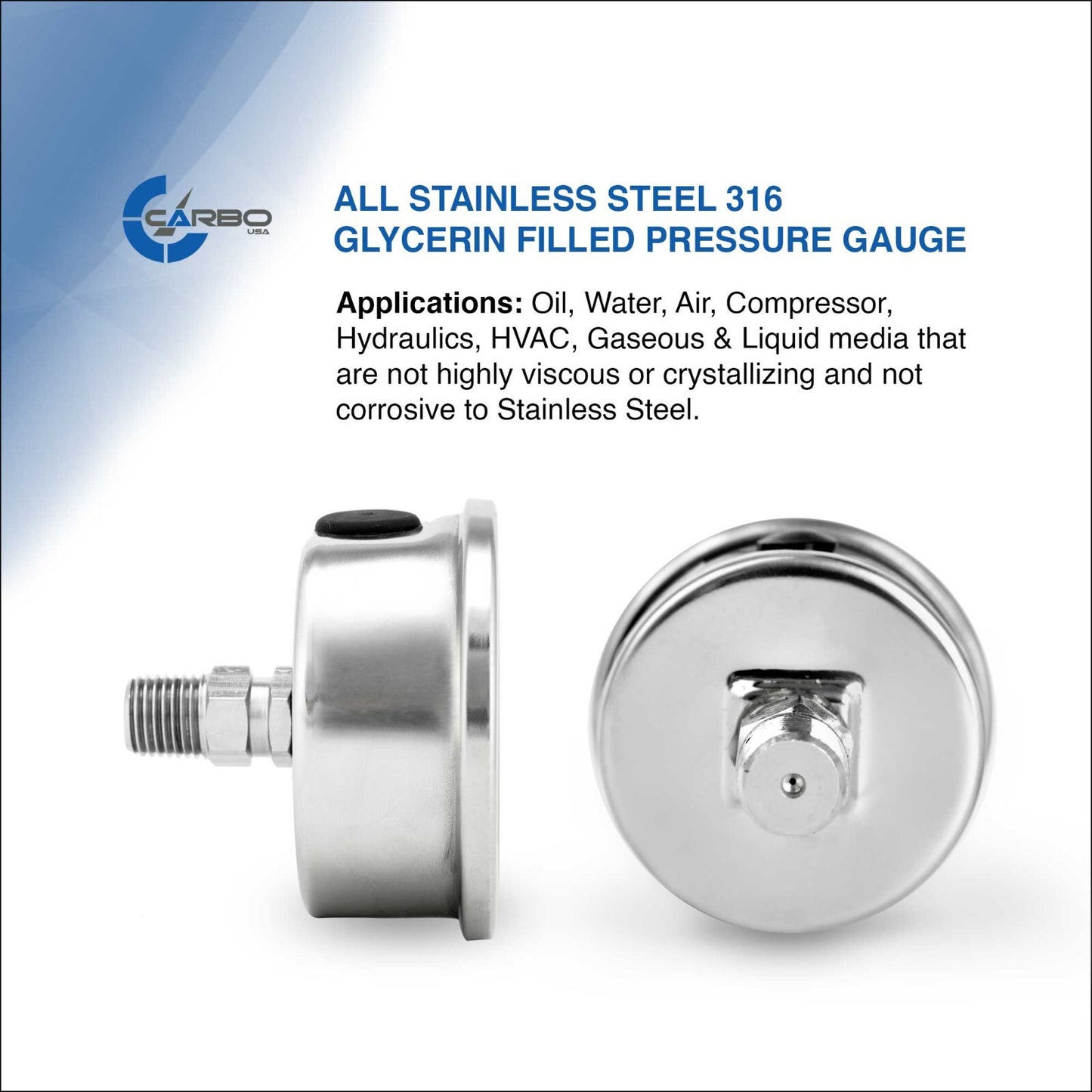

üApplications: Oil, Water, Air, Compressor, Hydraulics, HVAC, Gaseous & Liquid media that are not highly viscous or crystallizing and not corrosive or oxidizing to Stainless Steel
Pressure Range: 1500 Psi
Accuracy
ASME B40.1 Grade AAccuracy±2-1-2% ofspan
Dial Size
2 ½" (63 mm)
Connection
1/4" NPT Back Mount.
Scale

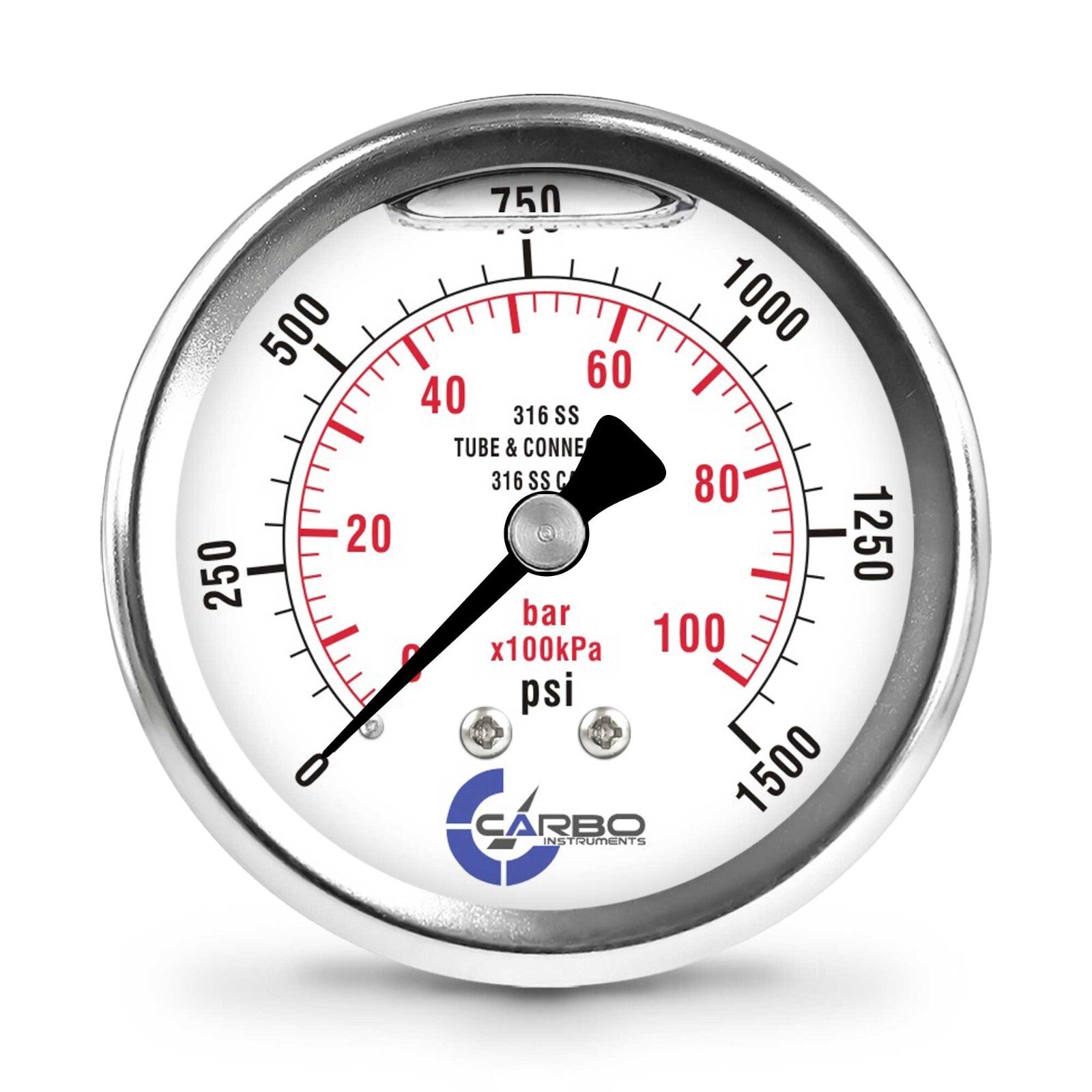

Dual Scale: psi / bar with kPa guidance.
Case Design
Crimped Style Casing, Stainless Steel.

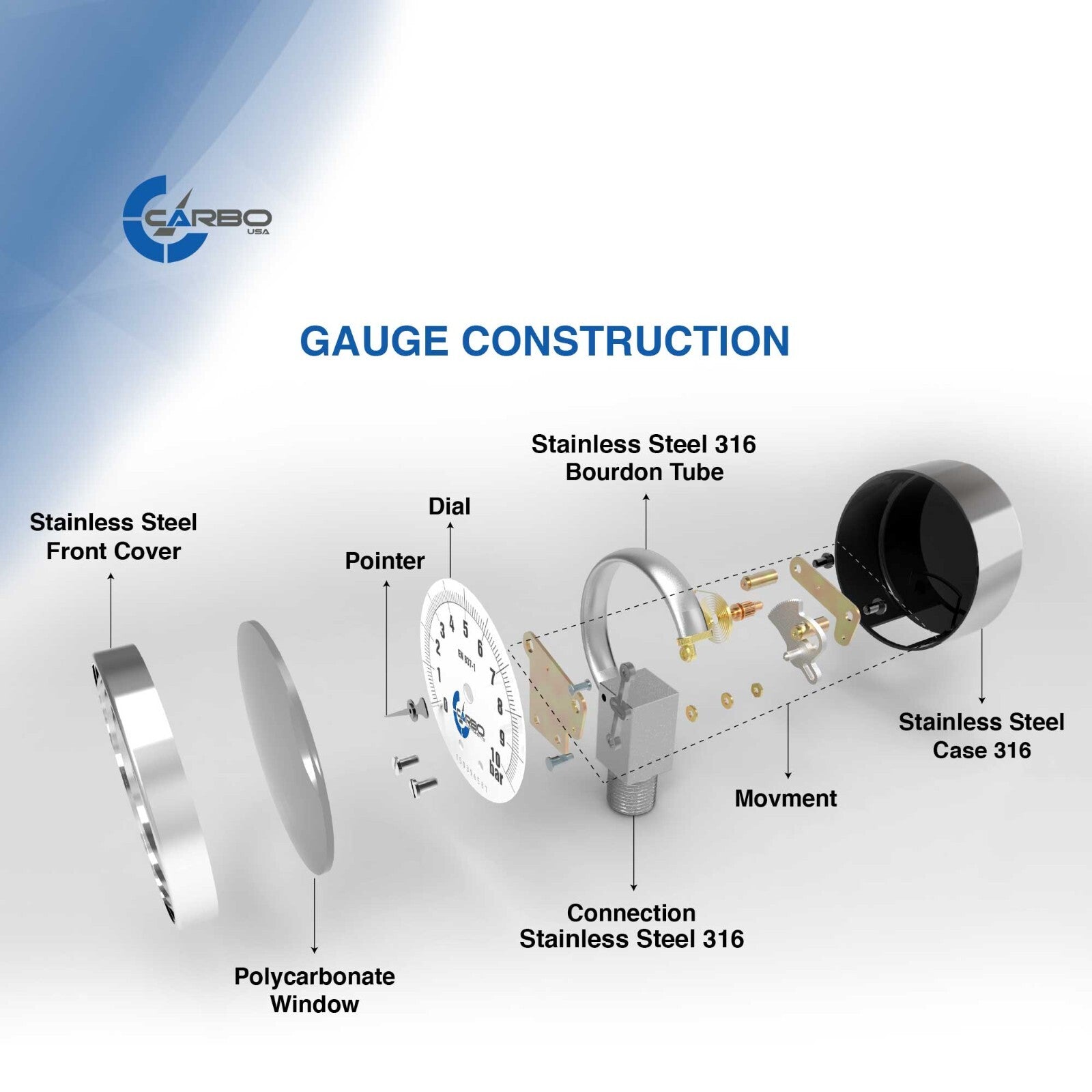

Material
Movement: |
Stainless Steel |
|
Bourdon
Tube:
|
Stainless Steel
|
|
Connection:
|
Stainless Steel
|
|
Window:
|
Poly Lens
|
Casing: |
Stainless Steel Case
|
Pointer: |
Aluminum |
Permissible Ambient Temperature
-4°F to 140°F (-20°C to 60°C)
Fill: LiquidFilled(Glycerin)
Manufactured in an ISO 9001 Certified factory to meet and exceed your expectation
Options:
- Custom Dial Layout
- Anti Vibration
- Special Connection Size
- Adapters & Mounting kit
Specifications subject to change without notice at any time, and information provided may vary from the actual Product.
Warning: This product contains chemicals such as lead in brass component known to the state of California to cause cancer and birth defects or other reproductive harms.

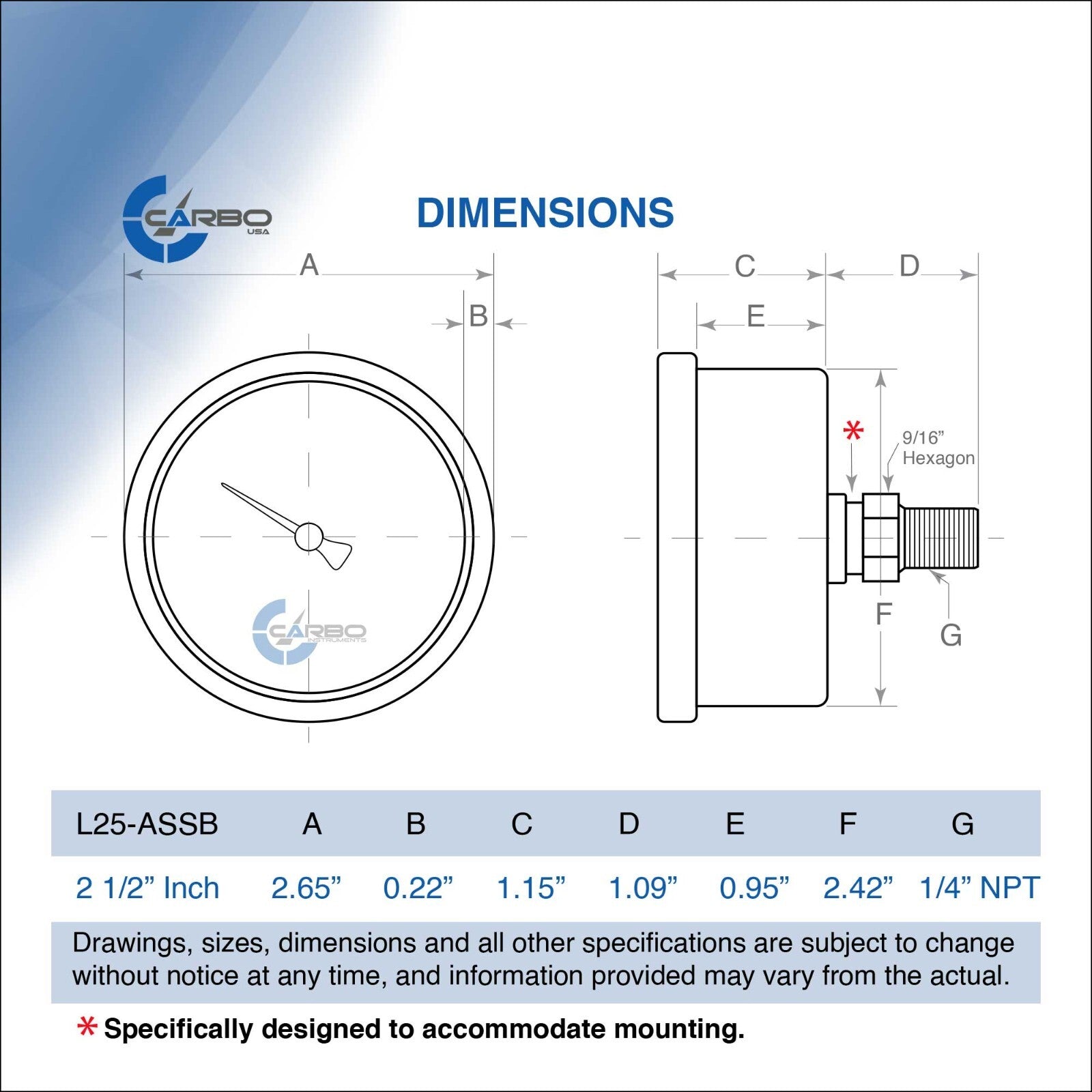

Drawings, sizes, dimensions and all other specifications are subject to change without notice at any time, and information provided may vary from the actual Product.
